kR^X

The OS kernel has always been a compelling target for attackers. After the introduction of defenses (e.g., SMEP, SMAP) that prevent the use of exploits based on the ret2usr methodology, attackers were forced to retrofit techniques originally designed for user space exploitation, such as Just-In-Time Code Reuse, to read the code section and construct their exploits on the fly therefore bypassing existing kernel hardening mechanisms.

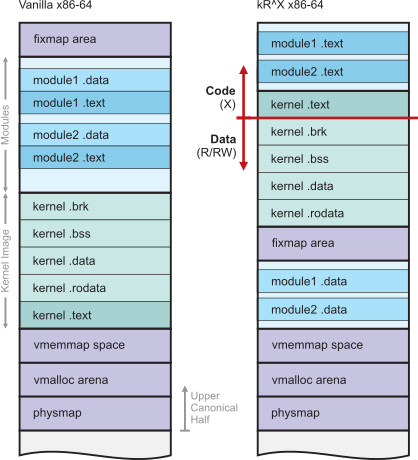

In kR^X, we propose a novel self-protection defense system based on compiler-assisted instrumentation mechanisms and code diversification. Specifically, kR^X first modifies the kernel memory layout to separate the code and data into two disjoint regions, placing the code on the top of the address space.



It then utilizes the GCC plugin interface to instrument every memory read with SFI-inspired range checks that enforce the Execute-Only primitive on the code section. Due to the large number of memory reads in the kernel code, kR^X makes sure to perform a series of safe optimizations to minimize both the number of instruction in every check and the number of checks emitted. Moreover, on modern Intel CPUs kR^X takes advantage of Intel MPX, to further reduce the runtime overhead of the instrumentation.



The above guarantee that an attacker is unable to read the kernel code section and identify the addresses of gadgets, effectively preventing them from constructing exploits on-the-fly.
Finally, it diversifies the code layout and protects return addresses through encryption or deception. When performing code diversification, kR^X randomizes on code block level and function level thus rendering both the internal and the function layout unpredictable. This is necessary to thwart exploits that employ gadgets at pre-computed addresses. Regarding return address protection, kR^X either emits a unique and unpredictable per-routine key which is used to XOR-encrypt/decrypt return addresses at function prologue/epilogue, or "hides" the return address among fake (decoy) ones that trigger exceptions when used as part of a code reuse exploits.

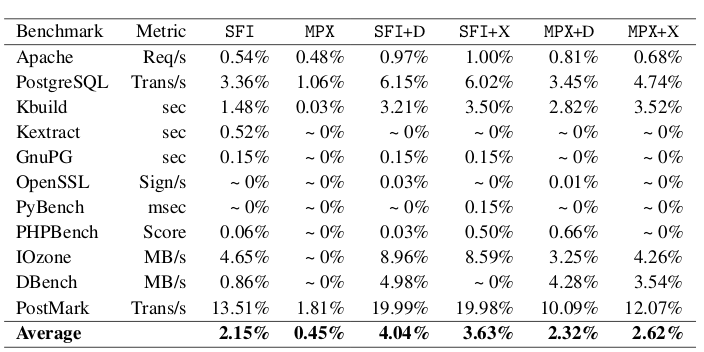

kR^X incurs small runtime overhead on real world applications, which ranges from 4.04% on legacy CPUs to 2.32% when MPX is available. The following table reports the runtime overhead of the SFI-inspired instrumentation (SFI), the MPX-based instrumentation (MPX), and the respective instrumentations in addition to the code diversification and return address encryption (SFI+X, MPX+X), and in addition to the code diversification and return address deception (SFI+D, MPX+D).

kR^X was published in EuroSys 2017 and an extended version of it (including how to employ the x86 segmentation unit to enforce the Execute-Only primitive) will be published in TOPS. The code of kR^X is publicly available.

kSplitStack

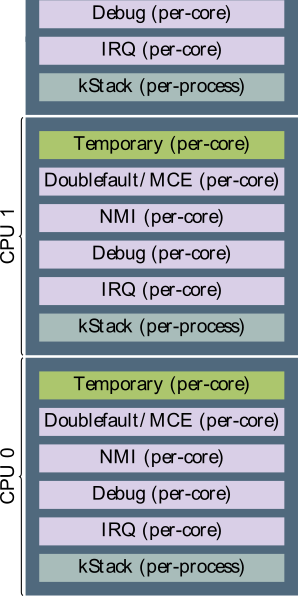

kSplitStack thwarts the construction of kernel code reuse exploits by "hiding" kernel code pointers. The fundamental concept of kSplitStack is the protected region, a part of the address space that attackers can neither read nor write. kSplitStack then ensures that return addresses are emitted in the protected region in a race-free manner, through the use of code instrumentation (both at compile and assembler level). In addition, it re-purposes the Interrupt Stack Table (IST) hardware feature of the x86-64 architecture to protect code pointers in interrupt context. Specifically, it uses the IST to force the hardware to emit the aforementioned code pointers to the protected region, thus protecting them from leakage or corruption. Finally, to prevent attackers from accessing code pointers through page table manipulation, kSplitStack employs a self-protection mechanism to protect page table entries, based on toggling the CPU write-protection.

kSplitStack is an ongoing work that is going to be submitted for publication soon.

IntFlow

Arithmetic operations that lead to integer errors, such as integer overflows or signedness conversion, are often an integral part of exploits. Despite the development of a number of testing and reporting systems, integer errors are still a problem. One of the main reasons is that often developers intentionally use constructs that violate the language standards for performance or portability reasons. Unfortunately, testing systems do not take such instances into consideration and flood the developer with reports of benign integer errors.

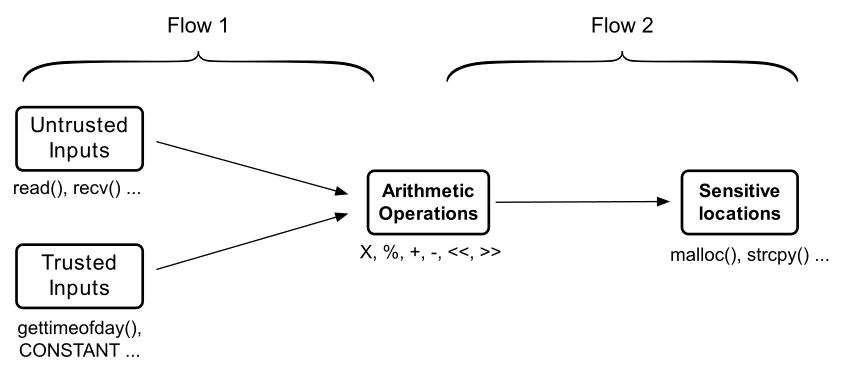

In IntFlow, we propose a compiler extension for the LLVM compiler which differentiates between reports of real bugs that might be exploitable, and reports of developer-intented standard violations. This is achieved by distinguishing critical integer errors: errors whose operands originate from untrusted sources (e.g., files) or whose result propagates to a sensitive program location (e.g., malloc()).



Intflow first employs IOC to instrument every integer operation with checks that trigger warnings when (at runtime) an arithmetic error occurs. It then utilizes static information flow tracking (specifically the llvm-deps compiler pass) to eliminate checks which originate from trusted sources or that flow to non-sensitive sinks. IntFlow offers three modes of operation:

• Blacklisting mode: IntFlow identifies all integer operations whose operands originate from untrusted sources and retains their checks, while removing all other checks.
• Whitelisting mode: IntFlow identifies all integer operations whose operands originate from trusted sources and eliminates their checks, while retaining all other checks.
• Sensitive mode: Intflow identifies all integer operations whose result propages to sensitive sinks and retains their checks, while removing all other checks.

Concretely, starting from a source (either an input source or an integer operation when in sensitive mode) IntFlow performs forward slicing to find interesting sinks. If such a sink is identified, it performs backward slicing to verify the validity of the flow and perform the appropriate action, depending on the mode of operation.
Since the detection of the errors occurs at runtime, developers are then asked to execute the augmented binary with a broad range of inputs to exercise as many paths as possible.



When applied to SPEC CPU2000, IntFlow was able to reduce the reports of developer-intended violations by approximately 89% while maintaning all critical arithmetic error reports. Additionally, when applied to real-world applications (including image processing tools, web browsers and chat clients) with benign inputs, it suppressed the error reports by 75%.

IntFlow was published in ACSAC 2014 and its code is publicly available.
